Pedrollo Surface Pumps |
HF 6A PUMP |
INSTALLATION AND USE
Pedrollo HF Centrifugal Pumps are suitable for use in civil and agricultural applications. The high efficiency and continuous duty capabilities makes these pumps ideal for use in activities such as flood and spray irrigation, drawing water from lakes, rivers and wells, or for any number of different industrial applications where the characteristics of high flow rates and mid to low head are required. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

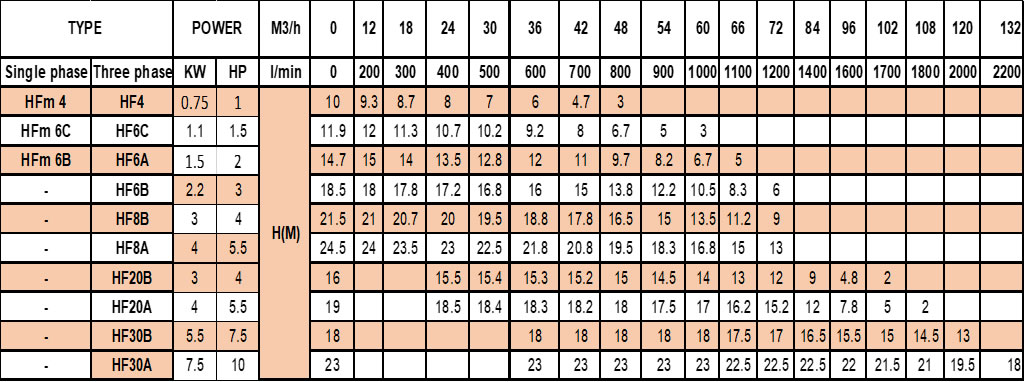

PERFORMANCE RANGE
- Flow rateup to 2200 l/min (132 m³/h)
- Head up to 24.5 m
- Manometric suctionlift up to 7 m
- Liquid temperature between –10 °C and +90 °C
- Ambient temperature up to +40 °C
- Max.working pressure:
– 6 bar for HF 4
– 10 bar for HF 6-8-20-30
- Continuousservice S1
