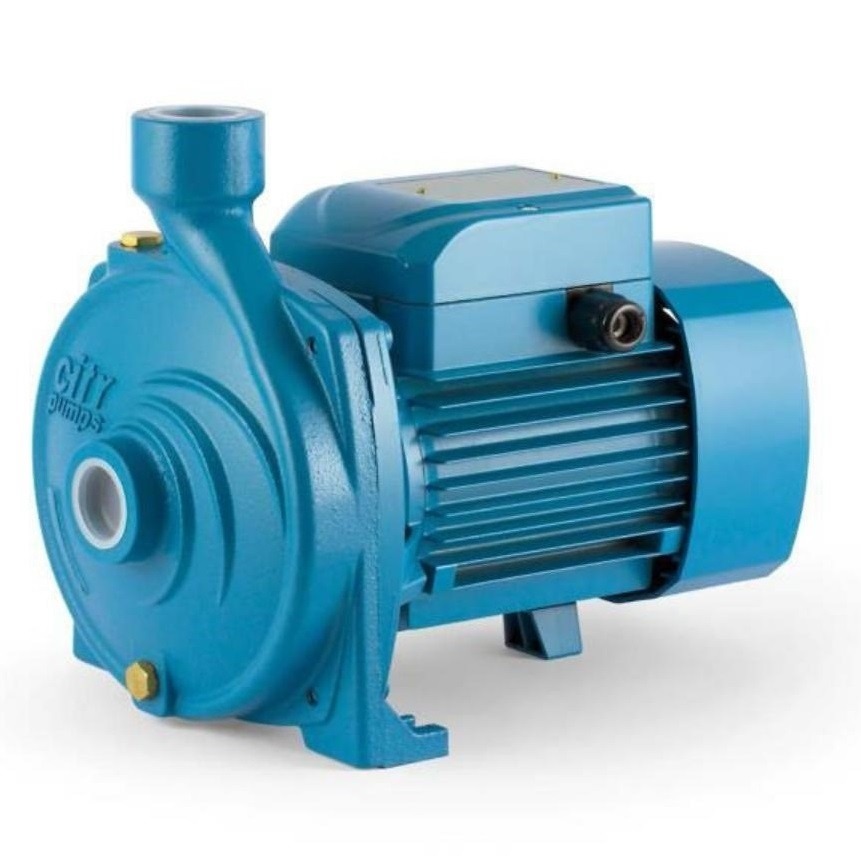

City Surface Pumps ICB550C/40, ICB750B/40

INSTALLATION AND USE

They are recommended for pumping clean water and liquids that are chemically non aggressive to the materials from which the pump is made. Their high efficiency and adaptability to the most varied, even unusual applications, make them the ideal choice in the domestic, civil and industrial field; in particular, for distributing water in combination with pressure sets, for increasing pressure in the mains, for fire-fighting sets. The pumps must be installed in enclosed places, or at least protected against inclement weather.

RANGE OF PERFORMANCE

• Flow rate up to 400 l/min (24 m3/h)
• Head up to 112 m
• Manometric suction lift up to 7 m
• Liquid temperature up to + 90°C
• Liquid temperature up to + 40°C in the ICBX version (with techno polymer impeller)
• Environment temperature up to + 40°C
